Description

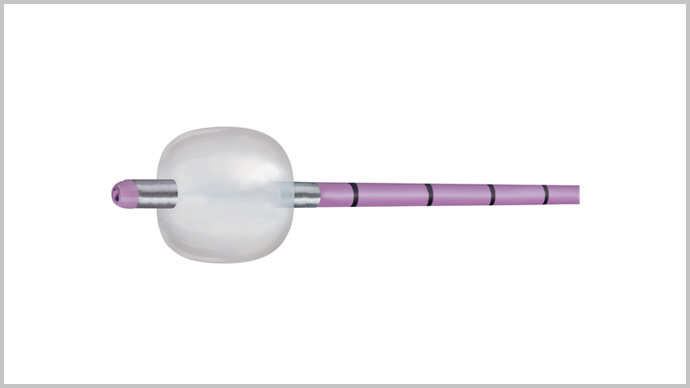

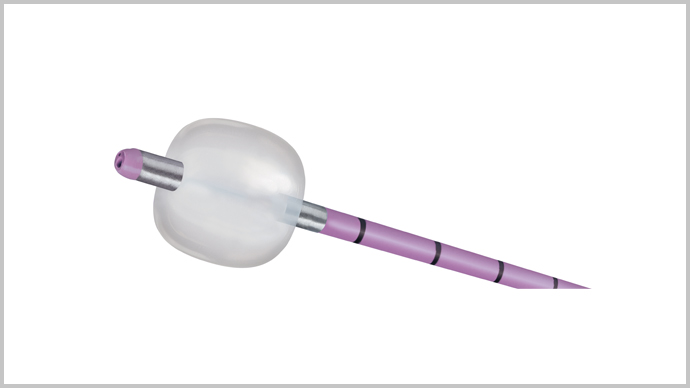

ENDO-FLEX stone extraction balloons have a distal plastic balloon framed with X-ray markings, a double or triple-lumen plastic tube and three proximal Luer-Lock connectors as access for contrast media, guide wire or 2-way stopcock for inflation
Variant with 1-stage balloon catheter:
- tube with diameter Fr. 7
- total length of 260 cm
- balloon diameter 14 mm
Contains 1 syringe corresponding to the max filling volume
Variant with 3-stage balloon catheter:
- tube with a diameter of Fr. 7
- total length from 200 to 250 cm
- balloon diameters between 9 and 16 mm.

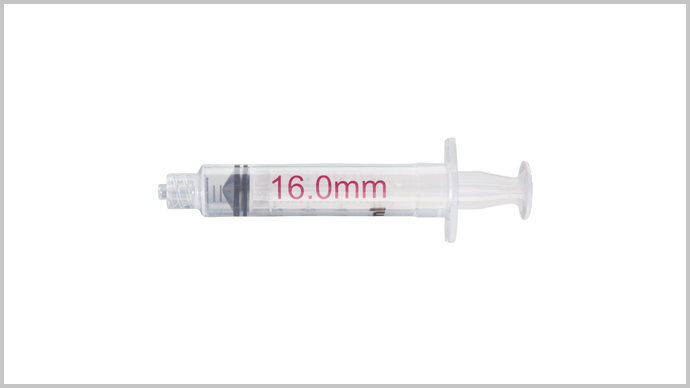

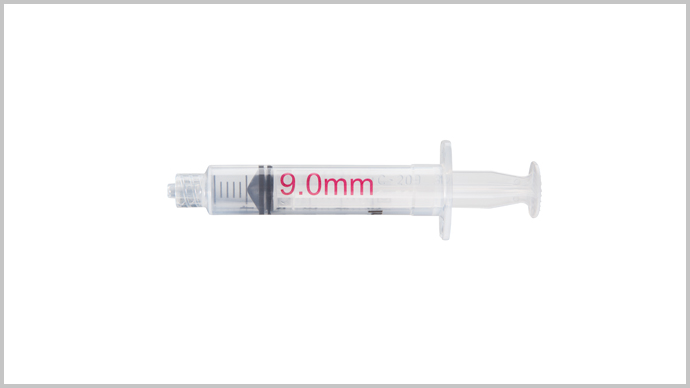

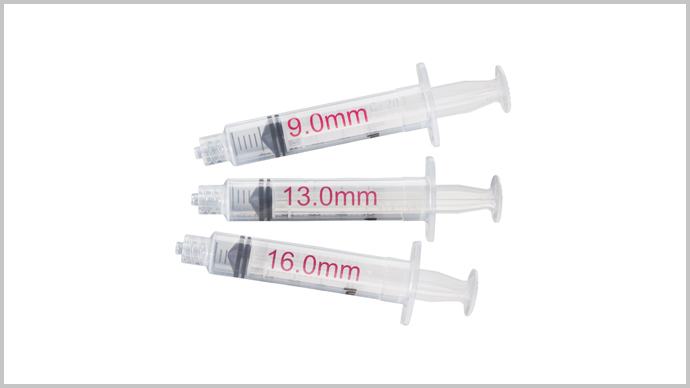

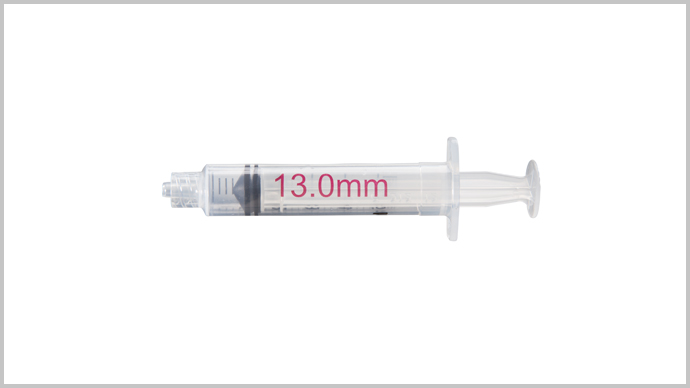

Contains 3 syringes corresponding to the max filling volume
Product Images and Videos
Customer Service
More Information
Single Stage Stone Extraction Balloon – Double Lumen, Latex
Incl. syringe for max. air capacity
| Catalogue No. | Compatible with Guide Wire (inch) | Catheter Outer Diameter (French) | Balloon Diameter in Deflated Condition (mm) | Balloon Diameter in Inflated Condition (mm) | Air Capacity (ml) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|---|---|
| 134000 | .025 | 5 | 1.9 | 9 | 1.5 | 200 | 2.4 |
| 134005 | .025 | 5 | 1.9 | 12 | 2.5 | 200 | 2.4 |
| 134010 | .035 | 7 | 2.6 | 14 | 2.5 | 200 | 2.8 |
| 134011 | .035 | 5-7 | 1.9 | 14 | 2.5 | 200 | 2.8 |
| 134020 | .035 | 7 | 2.6 | 18 | 5.0 | 200 | 2.8 |
Single Stage Stone Extraction Balloon – Double Lumen, Latex-free
Incl. syringe for max. air capacity
| Catalogue No. | Compatible with Guide Wire (inch) | Catheter Outer Diameter (French) | Balloon Diameter in Deflated Condition (mm) | Balloon Diameter in Inflated Condition (mm) | Air Capacity (ml) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|---|---|
| N135010- 260 | .035 | 7 | 2.6 | 14 | 2.8 | 260 | 2.8 |
Single Stage Stone Extraction Balloon – Triple Lumen, Latex
Incl. syringe for max. air capacity
| Catalogue No. | Compatible with Guide Wire (inch) | Catheter Outer Diameter (French) | Balloon Diameter in Deflated Condition (mm) | Balloon Diameter in Inflated Condition (mm) | Air Capacity (ml) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|---|---|
| 134030 | .035 | 7 | 2.6 | 16 | 5.0 | 200 | 2.8 |
| 134031 | .035 | 7 | 2.6 | 14 | 4.0 | 200 | 2.8 |
| 134032 | .035 | 7 | 2.6 | 12 | 2.4 | 200 | 2.8 |
| 134033 | .035 | 7 | 2.6 | 9 | 2.7 | 200 | 2.8 |

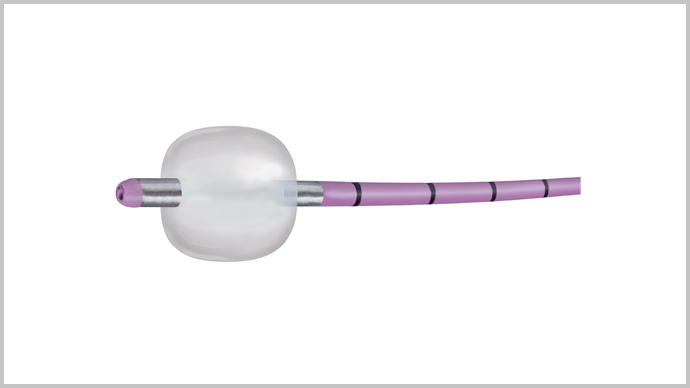

Multi Stage Stone Extraction Balloon – Latex
Compatible with guide wire .035”, incl. 3 syringes for max. air capacity
| Catalogue No. | Lumen | Catheter Outer Diameter (French) | Balloon Diameter in Deflated Condition (mm) | Balloon Diameter in Inflated Condition (mm) | Air Capacity (ml) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|---|---|
| 134010PRO | Double | 7 | 2.6 | 9-13-16 | 1.5-2.5-5.0 | 200 | 2.8 |
| 134030PRO | Triple | 7 | 2.6 | 9-13-16 | 1.5-2.5-5.0 | 200 | 2.8 |

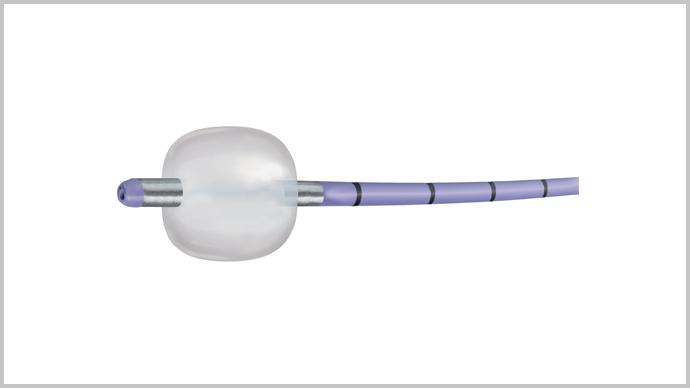

Multi Stage Stone Extraction Balloon – Latex-free
Compatible with guide wire .035”, incl. 3 syringes for max. air capacity
| Catalogue No. | Lumen | Catheter Outer Diameter (French) | Balloon Diameter in Deflated Condition (mm) | Balloon Diameter in Inflated Condition (mm) | Air Capacity (ml) | Working Length (cm) | Min. Accessory Channel (mm) |
|---|---|---|---|---|---|---|---|
| N135010PRO | Double | 7 | 2.6 | 9-13-16 | 1.5-2.5-5.0 | 200 | 2.8 |
| N135030PRO | Triple | 7 | 2.6 | 9-13-16 | 1.5-2.5-5.0 | 200 | 2.8 |
| N135030PRO-250 | Triple | 7 | 2.6 | 9-13-16 | 1.5-2.5-5.0 | 250 | 2.8 |
Instructions for Use - Stone Extraction Balloons SU latexfree
File size:
0 B
Type:
Instructions for Use - Stone Extraction Balloons SU latex
File size:
1,006 KB
Type:
PDF

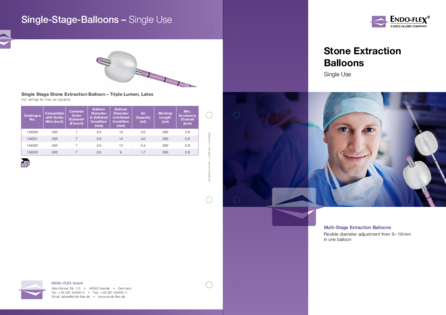

Leaflet Stone Extraction Balloons - Single Use
