Description
The flat needle bevel makes it easy to puncture lesions and take cytological tissue samples.
- needle diameters 19 / 22 / 25 gauge
- tube variant with stabilization aid for large working channels > 3.2 mm

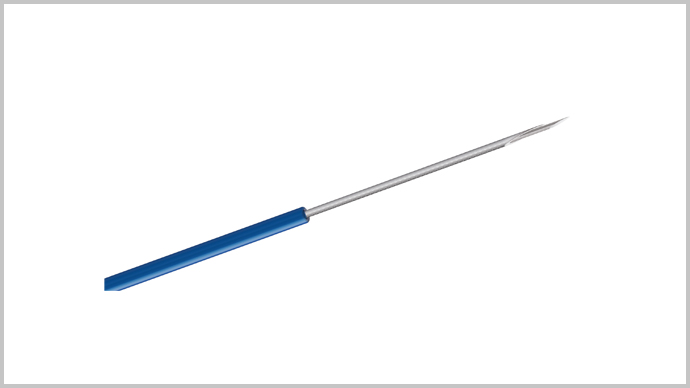

- laser engraving on the needle tip for optimal visibility during sonography

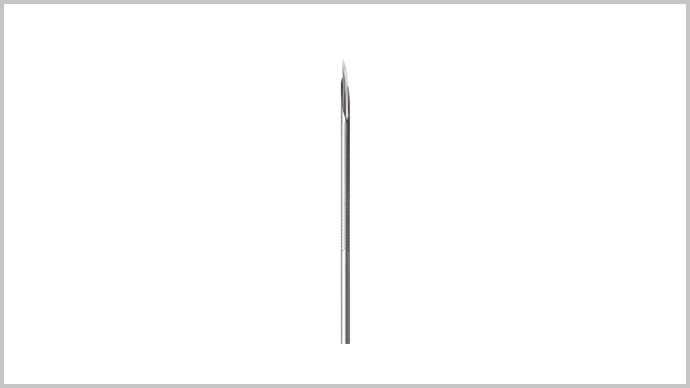

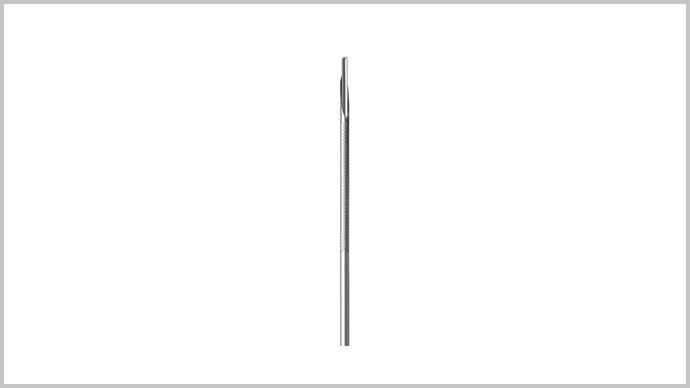

- Nitinol stylet with a rounded or beveled tip
Product Images and Videos
Customer Service
More Information

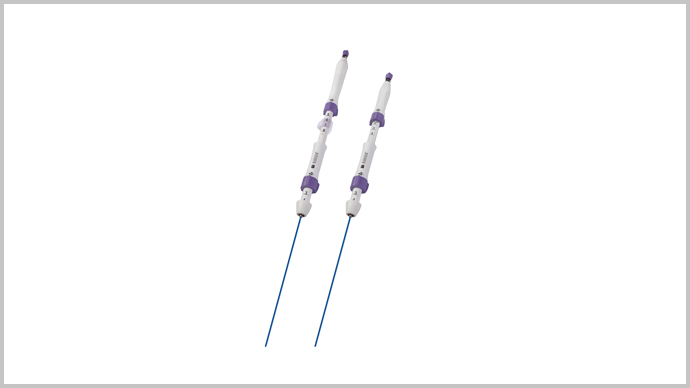

SonoFlex EUS
With atraumatic (round) Nitinol-stylet; laser engraved needle surface; including aspiration syringe 5 – 20 ml
| Catalogue No. | Description | Needle Diameter (Gauge / mm) | Outer Tube Diameter (mm) | Needle Length Adjustment (cm) |
|---|---|---|---|---|
| FNA-G01-1921 | EUS-guided aspiration needle; compatible with guide wires up to max. .030 (inch) | 19/1.1 | 2.1 | 0–8.5 |
| FNA-G01-2218 | EUS-guided aspiration needle | 22/0.7 | 1.8 | 0–8.5 |
| FNA-G01-2227 | EUS-guided aspiration needle; distal needle stabilization for large working channels (3.2 mm – 3.8 mm) | 22/0.7 | 2.7 | 0–8.5 |
| FNA-G01-2518 | EUS-guided aspiration needle | 25/0.5 | 1.8 | 0–8.5 |
| FNA-G01-2527 | EUS-guided aspiration needle; distal needle stabilization for large working channels (3.2 mm – 3.8 mm) | 25/0.5 | 2.7 | 0–8.5 |
SonoFlex EUS
With traumatic (beveled) Nitinol-stylet; laser engraved needle surface; including aspiration syringe 5 – 20 ml
| Catalogue No. | Description | Needle Diameter (Gauge / mm) | Outer Tube Diameter (mm) | Needle Length Adjustment (cm) |
|---|---|---|---|---|
| FNA-G02-2218 | EUS-guided aspiration needle | 22/0.7 | 1.8 | 0–8.5 |
| FNA-G02-2227 | EUS-guided aspiration needle; distal needle stabilization for large working channels (3.2 mm – 3.8 mm) | 22/0.7 | 2.7 | 0–8.5 |
Leaflet SonoFlex EUS Endoscopic Ultrasound-Guided Aspiration Needle – Single Use
File size:
214 KB
Type:
PDF
